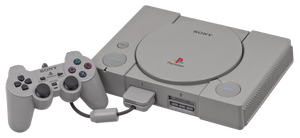

The PlayStation (プレイステーションPureisutēshon?, officially abbreviated as PS; unofficially referred to as the PSX or PS1) is a 32-bit fifth-generation video game consolefirst released by Sony Computer Entertainment in Japan on December 3, 1994. The PlayStation was the first of the PlayStation series of consoles and handheld game devices. In 2000, a re-designed, "slim" version was released, called the PSone, replacing the original grey console, and also being renamed to avoid confusion with its successor, the newly-released PlayStation 2.
The PlayStation was the first "computer entertainment platform" to ship 100 million units, which it had reached 9 years and 6 months after its initial launch. The last game for the system was FIFA Football 2005 released in October 2004, and the last PSone units were sold on Christmas 2004 for a total of 102 million units shipped. Games continued to sell until Sony ceased production of PlayStation games on March 23, 2006; eleven years after it was released, and just over half a year before the release of the PlayStation 3.
An original PlayStation control pad. This model was later replaced by the Dual Analogin 1997, and then the DualShock in 1997/1998.The first conceptions of the PlayStation date back to 1986. Nintendo had been attempting to work with disc-based technology since the Famicom, but the medium had problems. The Famicom Disk System's rewritable magnetic discs could be easily erased (thus leading to a lack of durability), and they lacked any sort of copy protection, thus were vulnerable to piracy. Consequently, when details of CD-ROM XA (which had neither of those problems) were released to the public, Nintendo was interested. Simultaneously developed by Sony and Philips, CD-ROM/XA was an extension of the CD-ROM format that combines compressed audio, visual, and computer data, allowing all to be accessed simultaneously. Nintendo approached Sony to develop a CD-ROM add-on, tentatively titled the "SNES-CD". A contract was signed, and work began. Nintendo's choice of Sony was due to a prior dealing: Ken Kutaragi, the person who would later be dubbed "The Father of the PlayStation", was the individual who had sold Nintendo on using the Sony SPC-700 processor for use as the eight-channel ADPCM sound set in the Super Famicom/SNES console through an impressive demonstration of the processor's capabilities.
Sony also planned to develop a Super Nintendo-compatible, Sony-branded console, but one which would be more of a home entertainment system playing both Super Nintendo cartridges and a new CD format which Sony would design. This was also to be the format used in SNES-CDs, giving a large degree of control to Sony despite Nintendo's leading position in the video gaming market.
The DualShock controller.The product, dubbed the "Play Station" was to be announced at the May 1991 Consumer Electronics Show (CES). However, when Nintendo's Hiroshi Yamauchi read the original 1988 contract between Sony and Nintendo, he realized that the earlier agreement essentially handed Sony complete control over any and all titles written on the SNES CD-ROM format. Yamauchi decided that the contract was totally unacceptable and he secretly canceled all plans for the joint Nintendo-Sony SNES CD attachment. Instead of announcing a partnership between Sony and Nintendo, at 9 am the day of the CES, Nintendo chairman Howard Lincoln stepped onto the stage and revealed that Nintendo was now allied with Philips, and Nintendo was planning on abandoning all the previous work Nintendo and Sony had accomplished. Lincoln and Minoru Arakawa had, unbeknownst to Sony, flown to Philips headquarters in Europe and formed an alliance of a decidedly different nature—one that would give Nintendo total control over its licenses on Philips machines.
After the collapse of the joint project, Sony considered halting their research, but ultimately the company decided to use what they had developed so far and make it into a complete, stand-alone console. As a result, Nintendo filed a lawsuit claiming breach of contract and attempted, in U.S. federal court, to obtain an injunction against the release of what was originally christened the "Play Station", on the grounds that Nintendo owned the name. The federal judge presiding over the case denied the injunction and, in October 1991, the first incarnation of the aforementioned brand new game system was revealed. However, it is theorized that only 200 or so of these machines were ever produced.
PlayStation Memory Card.By the end of 1992, Sony and Nintendo reached a deal whereby the "Play Station" would still have a port for SNES games, but Nintendo would own the rights and receive the bulk of the profits from the games, and the SNES would continue to use the Sony-designed audio chip. However, Sony decided in early 1993 to begin reworking the "Play Station" concept to target a new generation of hardware and software. As part of this process the SNES cartridge port was dropped and the space between the names "Play Station" was removed becoming "PlayStation", thereby ending Nintendo's involvement with the project.
The PlayStation was launched in Japan on December 3, 1994, North America on September 9, 1995, Europe on September 29, 1995, and Oceania on November 15, 1995. The launch price in the American market was US$299 and Sony enjoyed a very successful launch with titles of almost every genre, including Battle Arena Toshinden, Doom, Warhawk, Air Combat, Philosoma, and Ridge Racer. Almost all of Sony's and Namco's launch titles went on to spawn numerous sequels.
In addition to playing games, the PlayStation has the ability to read and play audio CDs. The CD player has the ability to shuffle the playback order, play the songs in a programmed order, and repeat one song or the entire disk. This function, as well as a memory card manager, can be accessed by starting the console either without inserting a game or keeping the CD tray open, thereby accessing a GUI for the PlayStation BIOS. The original PlayStation and PSone GUIs differ. The PlayStation GUI has a dark blue background and buttons that are designed like rainbow graffiti; the PSone has a blocked grey background with 2 icons; one for memory cards management, the other for CD player access (some versions of the original PlayStation have the blocked grey background, however, the memory card and CD player icons are different). If the CD lid is closed with a game inside at any time while at the menu, the game will immediately start.
See also: Chronology of PlayStation games and List of PlayStation gamesAs of September 30, 2007, a total of 7,918 software titles have been released worldwide (counting games released in multiple regions as separate titles). As of March 31, 2007, the cumulative software shipment was at 962 million units. The very last game for the system released in the United States was FIFA Football 2005. However, it can be noted that on July 26, 2007 in Japan and March 18, 2008 in the U.S., Metal Gear Solid: The Essential Collection was released, which contained new printings of the game Metal Gear Solid in the original PlayStation format. Also in 2011, Capcom released Resident Evil 15th Anniversary Collection, which contains reprinted PlayStation copies ofResident Evil, 2 and 3.
Sony then released a version dubbed "Dual Shock", which included a controller with two analog sticks and a built-in vibration-feedback feature.
The OK and Cancel buttons on most of the Japanese PlayStation games are reversed in their North American and European releases. In Japan, the  button (maru, right) is used as the OK button, while the  button (batsu, wrong) is used as Cancel. North American and European releases have the  button or the  buttons as the OK button, while either the  or the  button is used as Cancel (some titles like Xenogears used the  button for cancelling actions and selections, along with the PlayStation 2 system browser and the XrossMedia Bar on the PlayStation 3 and the PSP). However, a few games, such as Square's Vagrant Story, Final Fantasy VII (which used the  button as cancel) and Final Fantasy Tactics, Namco's Ridge Racer Type 4, and Konami's Metal Gear Solid, have the buttons remain in the same Japanese configurational layout. Some other games, like the Japanese version of Gran Turismo, had used different controls that are similar to North American games. These Japanese button layouts still apply to other PlayStation consoles. This is because in the early years Sony America (SCEA), Sony Europe (SCEE), and Sony Japan (SCEJ) had different development and testing documents (TRCs) for their respective territories.
Developer's kit PlayStation (PAL)A comparison of the SCPH-1001, SCPH-5001 and SCPH-9001 models. The SCPH-900x revision saw the removal of the Parallel I/O port while the RCA jacks were removed in the SCPH-500x revision.The PlayStation went through a number of variants during its production run, each accompanied by a change in the part number. From an external perspective, the most notable change was the gradual reduction in the number of external connectors on the unit. This started very early on—the original Japanese launch units (SCPH-1000) had an S-Video port, which was removed on the next release. This also led to the strange situation where the US and European launch units had the same part number series (SCPH-100x) as the Japanese launch units, but had different hardware (Rev. C silicon and no S-Video port)—they were the same as the Japanese SCPH-3000, so for consistency should have been SCPH-3001 and SCPH-3002 (this numbering was used for the Yaroze machines, which were based on the same hardware and numbered DTL-H3000, DTL-H3001, and DTL-H3002). Also, the first models (DTL-H1000, DTL-H1001, DTL-H1002) had some problems with printf function and developers had to use another function instead. This series of machines had a reputation for CD drive problems—the optical pickup sled was made of thermoplastic, and eventually developed wear spots that moved the laser into a position where it was no longer parallel with the CD surface—a modification was made that replaced the sled with a die-cast one with hard nylon inserts, which corrected the problem.
SCPH-100x models are notable for being sought after and modded by audiophile enthusiasts, because most consoles from this line featured a DAC by Ashahi Kasei Microsystems (AKM) and had RCA output.
With the release of the next series (SCPH-500x), the numbers moved back into sync. A number of changes were made to the unit internally (CD drive relocated, shielding simplified, PSU wiring simplified) and the RCA jacks and RFU power connectors were removed from the rear panel. This series also contained the SCPH-550x and SCPH-555x units, but these appear to have been bundle changes rather than actual hardware revisions. Starting with this series, PAL variants had the "power" and "open" buttons changed from text to symbols and the printed text on the back was changed to reliefs of the same.
These were followed by the SCPH-700x and SCPH-750x series—they are externally identical to the SCPH-500x machines, but have internal changes made to reduce manufacturing costs (for example, the system RAM went from 4 chips to 1, and the CD controller went from 3 chips to 1). A slight change of the startup screen was made. The diamond is seen as longer and thinner and the trademark symbol (™) is now placed after "Computer Entertainment" instead of after the diamond, as it was on the earlier models. Also new to the SCPH-7xxx series was the introduction of the "Sound Scope" - light show music visualizations. These were accessible by pressing the Select button while playing any normal audio CD in the system's CD player. While watching these visualizations, players could also add various effects like color cycling or motion blur. These music visualizations were kept in all future PlayStation 1 models.
The final revision to the original PlayStation was the SCPH-900x series—these had the same hardware as the SCPH-750x machines with the exception of the removal of the parallel port and a slight reduction in the size of the PCB. The removal of the parallel port was probably partly because no official add-on had ever been released for it, and partly because it was being used to connect cheat cartridges that could be used to defeat the regional lockouts and copy protection.
The PSone was based on substantially the same hardware as the SCPH-900x, but had the serial port removed, the controller / memory card ports moved to the main PCB and the power supply replaced with an AC/DC converter that was also on the main PCB. Also the overall system menu received a graphical simplicity overhaul, along with a surround sound/echo effect being added to the CD player menu.
Earliest series had potentiometers on the board for adjusting the reading mechanism, named BIAS, GAIN and an unknown one. By connecting a voltmeter between the upper-most metering point near the BIAS potentiometer and the chassis, the resulting voltage could be read. The supposed right values are 1.70 V when a CD is spinning at 1x speed and 1.85 V when a CD is spinning at 2x speed. Further tuning was also possible on the unique potentiometer present on the CD drive. Later series featured an automatic laser calibration mechanism.
Another version that was colored blue (as opposed to regular console units that were grey in color) was available to game developers and select press. Later versions of this were colored green—on a technical level, these units were almost identical to the retail units, but had a different CD controller in them that did not require the region code found on all pressed disks, since they were intended to be used with CD-R media for debugging. This also allowed the use of discs from different regions, but this was not officially supported; different debug stations existed for each region. The two different color cases were not cosmetic—the original blue debug station (DTL-H100x, DTL-H110x) contained "Revision B" silicon, the same as the early retail units (these units had silicon errata that needed software workarounds), the green units (DTL-H120x) had Rev. C hardware. As part of the required tests, the user had to test the title on both. Contrary to popular belief, the RAM was the same as the retail units at 2 MB. The firmware was nearly identical—the only significant change was that debug prints got sent to the serial port if the title did not open it for communications—this used a DTL-H3050 serial cable (the same as the one used for the Yaroze).
With the early units, many gamers experienced skipping full-motion video or physical "ticking" noises coming from their PlayStations. The problem appears to have come from poorly placed vents leading to overheating in some environments—the plastic moldings inside the console would warp very slightly and create knock-on effects with the laser assembly. The solution was to ensure the console was sat on a surface which dissipated heat efficiently in a well vented area, or raise the unit up slightly by propping something at its edges. A common fix for already affected consoles was to turn the PlayStation sideways or upside-down (thereby using gravity to cancel the effects of the warped interior) although some gamers smacked the lid of the PlayStation to make a game load or work.
Prior to the PlayStation, the reproduction of copyrighted material for gaming consoles was restricted to either enthusiasts with exceptional technical ability, or others that had access to CD manufacturers. However, the increased availability of cheap CD burners at this time led Sony to introduce several methods to make PlayStation discs difficult to copy:
- Sectors 12 through 15 contain an invalid zeroised EDC/ECC checksum, so if the PS reads and does not see an invalid EDC/ECC then it knows that the CD in the drive is a copy. The error is pressed into the disc at the time of manufacture, and cannot be reproduced on most CD-R recorders because the recorder will automatically regenerate the 'corrupt' sector's checksum.
- The PlayStation uses a mixed-mode format with most data in Mode 2/Form 1 and streaming audio/video data in Mode 2/Form 2. Most CD-R drives at the time could not handle this variation well, but newer drives are able to.
- Discs were manufactured with a dark blue-colored plastic (transparent only to the infrared radiation used by CD-ROM lasers), and it was theorized that the PlayStation's drive was engineered to require these tinted discs. However, this is easily disproven, as PlayStation CD-ROMs can be read by most CD drives, and the PlayStation will read most recordable CDs.
The installation of a modchip allowed the PlayStation to play games recorded on a regular CD-R. It also allowed the console's capabilities to be expanded in other ways, such as playing games from other regions. By the end of the system's life cycle almost anyone with minimal soldering experience was able to perform these modifications. This created a wave of games developed without official approval using free, unofficial tools, as well as the reproduction of original discs. With the introduction of such devices the console became very attractive to programmers and illegal copiers alike, as well as those who merely wished to protect the lifespan of their lawful, original discs.
Main article: Net YarozeA version of the PlayStation called the Net Yaroze was also produced. It was more expensive than the original PlayStation, colored black instead of the usual gray, and most importantly, came with tools and instructions that allowed a user to be able to program PlayStation games and applications without the need for a full developer suite, which cost many times the amount of a PlayStation and was only available to approved video game developers. Naturally, the Net Yaroze lacked many of the features the full developer suite provided.Programmers were also limited by the 2 MB of total game space that Net Yaroze allowed. The amount of space may seem small, but games like Ridge Racer ran entirely from the system RAM (except for the streamed music tracks). It was unique in that it was the only officially retailed PlayStation with no regional lockout; it would play games from any territory. It would not however play CD-R discs, so it was not possible to create self-booting Yaroze games without a modified PlayStation.
|Manufacturer||Sony Computer Entertainment|
|Type||Video game console|
|Generation||Fifth generation era|
|Retail availability||July 7, 2000 – March 23, 2006|
|Units sold||28.15 million|
The PSone is Sony's smaller, redesigned version of its PlayStation video game console.The PSone is considerably smaller than the original PlayStation (dimensions being 38 mm × 193 mm × 144 mm versus 45 mm × 260 mm × 185 mm). It was released on July 7, 2000,and went on to outsell all other consoles throughout the remainder of the year—including Sony's own brand-new PlayStation 2. The PSone is fully compatible with all PlayStation software.
There were five differences between the PSone and the original PlayStation. The first was a major cosmetic change to the console, it became much smaller. The second was the system menu Graphical User Interface. The third was an added protection against the use ofmodchips (by changing the internal layout and making previous-generation modchip devices unusable). The fourth is a lack of the original PlayStation's parallel and serial ports. These ports allowed multiple consoles to be connected for multiplayer, connecting a console to debugging software, as well as third-party game enhancement devices such as theGameShark. The fifth is that when the console is started up, instead of a trademark symbol(™) beside the words "Computer Entertainment" there is a registered trademark symbol (®).
The PSone "Combo" - with LCD ScreenSony also released a version with a 5" LCD screen and an adaptor (though it did not have a battery: it is powered by plugging the adapter in a mains socket, or in a car). It was called the Combo pack.
Sony's successor to the PlayStation is the PlayStation 2, which is backwards compatible with its predecessor in that it can play almost every PlayStation game. The third generation of the PlayStation, the PlayStation 3, was launched on November 11, 2006 in Japan, November 17, 2006 in North America, and March 23, 2007 in Europe. Like the PlayStation 2, the PlayStation 3 is able to play most original PlayStation games (with some early models also able to play PlayStation 2 games). While PlayStation 3 games are not region-locked, PlayStation and PlayStation 2 games are only playable on PlayStation 3 consoles from the same region.
The PlayStation Portable, or PSP, is a handheld game console first released in late 2004. The PSP is capable of playing PlayStation games downloaded via Sony's online store, and can also play any PlayStation game by using the PlayStation 3's remote play feature while the disc in the PlayStation 3. Sony hopes to release nearly all PlayStation games on a gradual basis. It is also possible to convert original PlayStation disc images into executable binaries using freely available software. These games are then playable on PSPs that have been modified to run unsigned code.
